Nitinol Twist Wire NiTi Wire Nitinol Wire We Do It All With Nitinol

Nitinol is a SMA alloy with superelastic and shape memory properties. Peiertech provides High Quality Low Inclusion Nitinol Materials. Peiertech produces special NiTi alloy products for medical devices and produces nitinol materials, Af temperature range is -40℃ to +85℃.
Availability:
  • D0.025-4mm
  • Peiertech

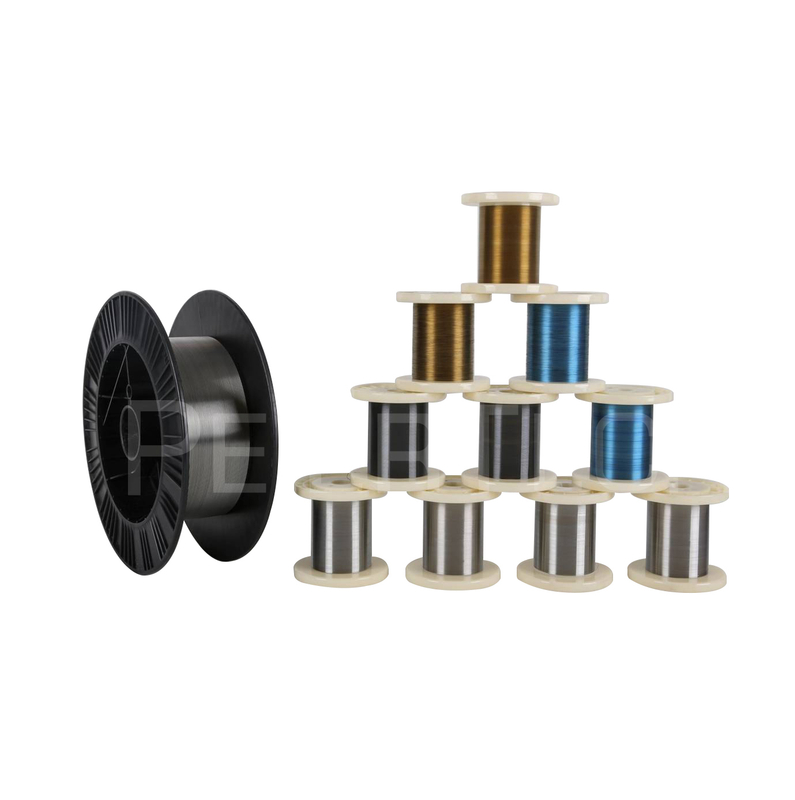

Wire Surface Status

●    Black oxide

●    Light oxide(varies from golden yellow to brown)

●    Etched

●    Shinny

●    Gloss®(ultra shinny surface)

●    Centerless ground

niti wire D

Notes:  1) Tighter tolerance available upon request

       2) Out of round tolerance shall be one-half the total size tolerance

Nitinol Flat Wire

Diameters and Tolerances

Sheet 1: Dimension and tolerance of the thickness of the flat wire (γ: Width-thickness ratio   T: Thickness)

Width-thickness ratio γ

Thickness

Tolerance of the thickness

2<γ≤7

0.025mm≤T0.05mm

±0.005mm

0.05mm<T≤0.80mm

±0.1Tmm

Sheet 2: Dimension and tolerance of the width of the flat wire (γ: Width-thickness ratio   W: Width)

Width-thickness ratio γ

Width

Tolerance of the thickness

2<γ≤7

0.1mm≤W2.5mm

±0.1Wmm

0.076mm≤W0.1mm

±0.01mm

* Other diameter please discuss with Peiertech.

Shape

Nitinol Flat Wire

Nitinol Square Wire

Mechanical properties

UTS              ≥1100Mpa

Elongation    ≥9%

UPS             ≥480Mpa

Af                10±10℃

Strain           0.5

Surface State Options:

Black

Light Oxide(Amber)

Oxide free
