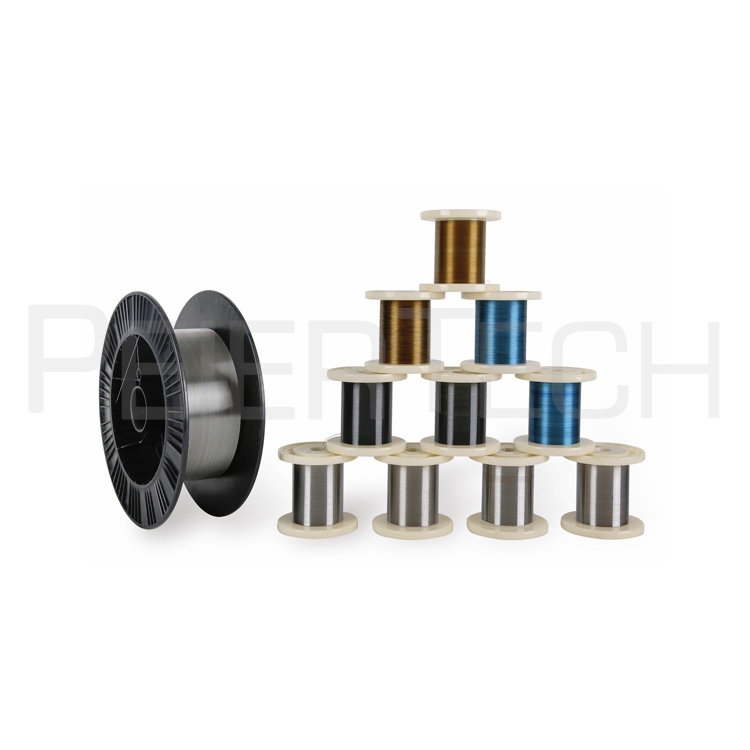

Nitinol Wire Titanium-Nickel Wire Peiertech provides High Quality Low Inclusion Nitinol Materials

Nitinol is a SMA alloy with superelastic and shape memory properties. Peiertech produces special NiTi alloy products for medical devices and nitinol materials, Af temperature range is -40℃ to +85℃.
Peiertech provides High Quality Low Inclusion Nitinol Materials
Availability:
  • D0.025-4mm
  • Peiertech

Wire Surface Status

●    Black oxide

●    Light oxide(varies from golden yellow to brown)

●    Etched

●    Shinny

●    Gloss®(ultra shinny surface)

●    Centerless ground

niti wire D

Notes:  1) Tighter tolerance available upon request

       2) Out of round tolerance shall be one-half the total size tolerance

Nitinol Flat Wire

Diameters and Tolerances

Sheet 1: Dimension and tolerance of the thickness of the flat wire (γ: Width-thickness ratio   T: Thickness)

Width-thickness ratio γ

Thickness

Tolerance of the thickness

2<γ≤7

0.025mm≤T0.05mm

±0.005mm

0.05mm<T≤0.80mm

±0.1Tmm

Sheet 2: Dimension and tolerance of the width of the flat wire (γ: Width-thickness ratio   W: Width)

Width-thickness ratio γ

Width

Tolerance of the thickness

2<γ≤7

0.1mm≤W2.5mm

±0.1Wmm

0.076mm≤W0.1mm

±0.01mm

* Other diameter please discuss with Peiertech.

Shape

Nitinol Flat Wire

Nitinol Square Wire

Mechanical properties

UTS              ≥1100Mpa

Elongation    ≥9%

UPS             ≥480Mpa

Af                10±10℃

Strain           0.5

Surface State Options:

Black

Light Oxide(Amber)

Oxide free
