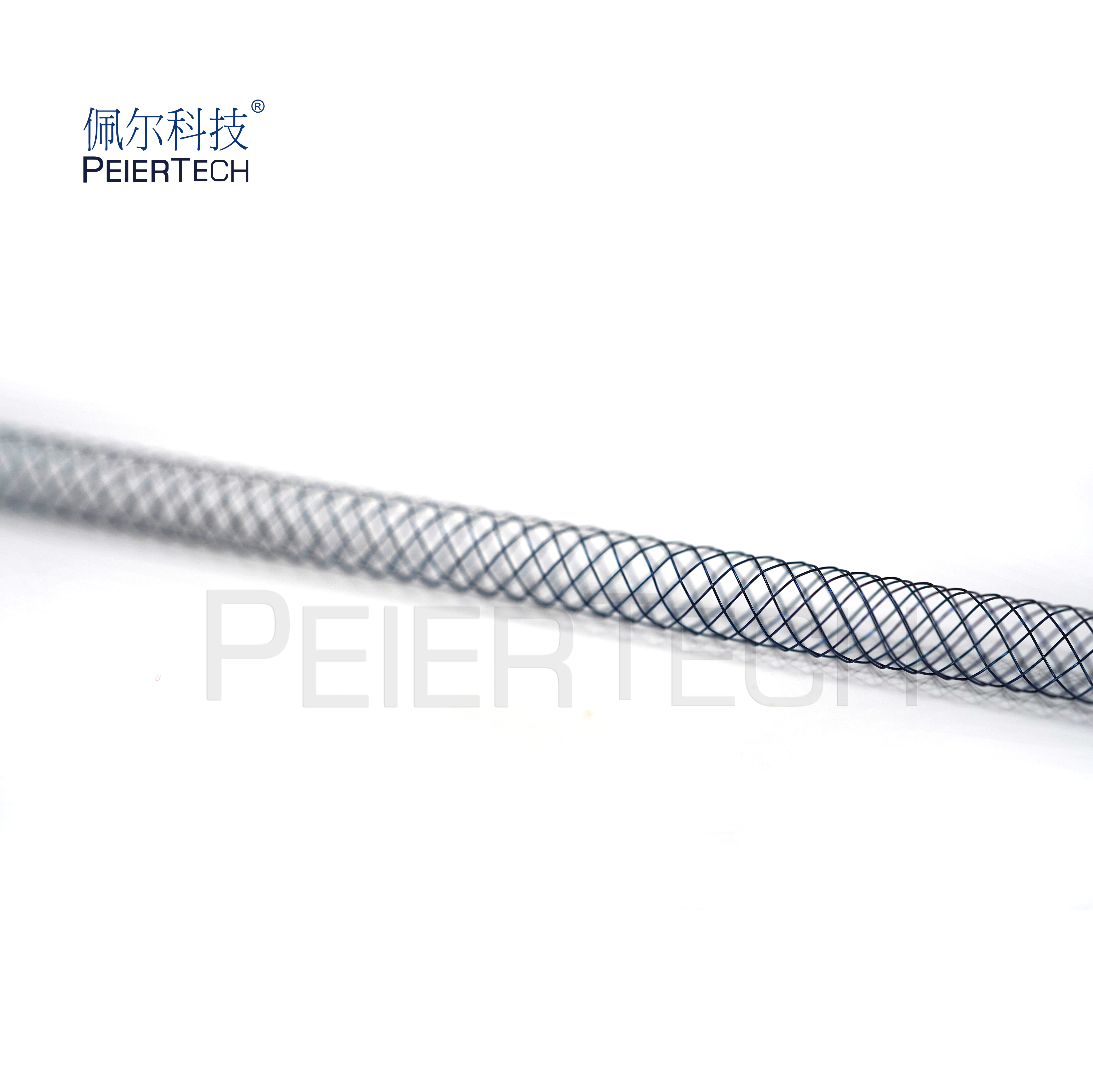

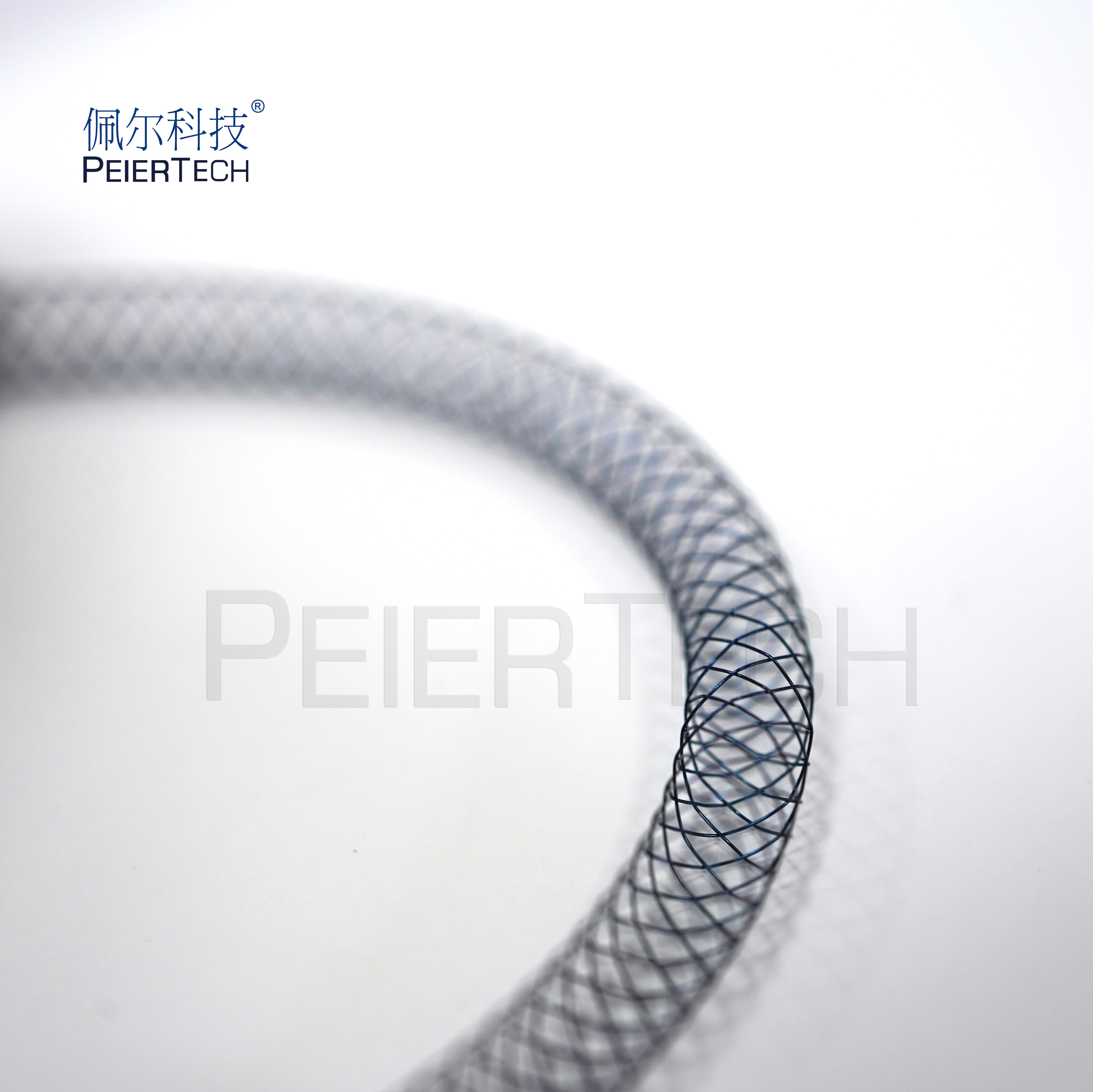

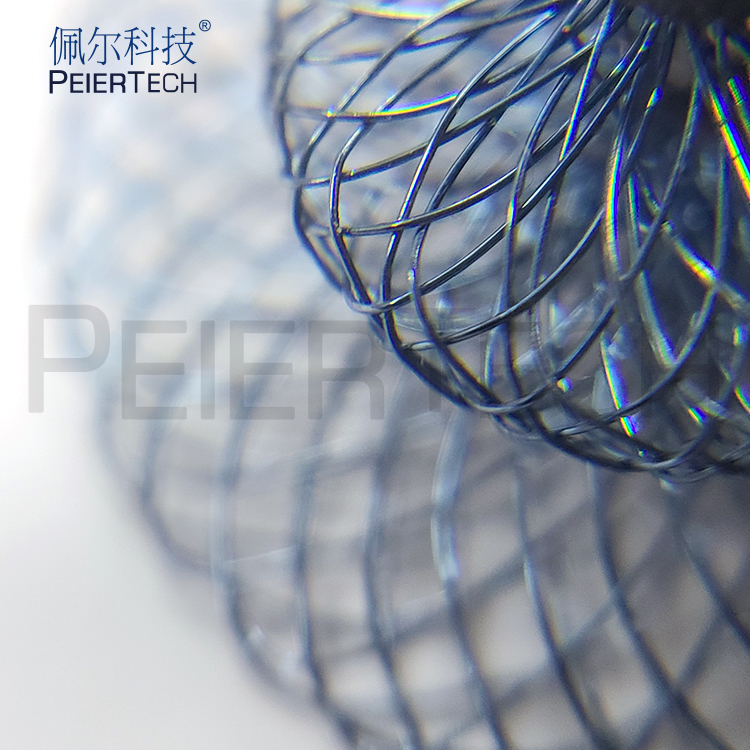

Nitinol Stents / Nitinol Wire Braided
Provides customized braiding service for various types of stents, catheter and support tubes
# of strands: 72-wire/ 36-wire/ 48-wire/ 96-wire
Braiding materials:
Nitinol Wire (Round/ Flat wire) ;
Stainless Steel Wires (Round/ Flat wire) ;
Radiopaque wire (Pt/Pt-Ir);
Nelon;
etc.
Diameter Range of Round Wire: 0.01mm-0.2mm
Braiding Structure: 1*2 / 2*2 / 1*1,etc.
Braiding Length: ≤2m
Braiding OD:φ3-50mm
Braiding PPI:0-300PPI. Multi segment variable pitch.
